Carbon wrapping for beams is a modern and efficient method for strengthening concrete structures. This technique involves applying carbon fiber-reinforced polymer (CFRP) wraps to beams, enhancing their load-bearing capacity and durability. It’s particularly beneficial for structures experiencing increased loads, aging, or damage. In this article, we’ll explore the benefits, applications, and considerations of carbon wrapping for beams.
What is Carbon Wrapping for Beams?
Carbon wrapping is an advanced technique used to strengthen and rehabilitate concrete beams in modern construction and structural engineering. This method primarily involves applying carbon fiber-reinforced polymer (CFRP) sheets or fabrics onto the surface of existing concrete beams. The carbon fiber material is bonded to the beam using high-strength epoxy resins, ensuring a secure and durable connection. This process, commonly referred to as FRP jacketing, enhances the beam’s overall structural capacity while maintaining its original dimensions and appearance. Unlike traditional methods such as steel jacketing or concrete encasement, carbon wrapping is minimally invasive, making it highly suitable for both new and existing structures. One of the key advantages of carbon wrapping is its ability to improve the tensile strength of concrete beams. Concrete is naturally strong in compression but weak in tension.
By applying CFRP sheets, the beams gain additional tensile reinforcement, which allows them to resist bending, cracking, and other structural stresses more effectively. This makes carbon wrapping an ideal solution for beams that are experiencing increased loads, deterioration due to aging, or damage from environmental factors. The lightweight nature of carbon fiber materials also means that the added reinforcement does not significantly increase the load on the overall structure, which is a major benefit in retrofitting projects.
Benefits of Carbon Wrapping
One of the most significant benefits of carbon wrapping is its remarkable ability to enhance the load-bearing capacity of concrete beams. Traditional concrete beams can handle compressive loads efficiently but often lack sufficient tensile strength to resist bending or heavy dynamic loads. By applying carbon fiber-reinforced polymer (CFRP) sheets, the beams gain additional tensile strength, which directly increases their overall stiffness and structural performance. This reinforcement enables the beams to support heavier loads without compromising safety or stability, making it an ideal solution for structures that require strengthening due to increased usage or aging.
Beyond improving load-bearing capacity, carbon wrapping provides excellent corrosion resistance. Concrete beams, particularly in outdoor or industrial environments, are often exposed to moisture, chemicals, or other environmental factors that can deteriorate the structure over time. CFRP wraps form a protective layer around the beam, shielding the concrete from these damaging elements. This prevents cracks, spalling, and other structural issues that typically arise from exposure, ensuring that the beam maintains its integrity over the long term.
The combination of increased strength and protection against corrosion also significantly extends the service life of the structure. Buildings, bridges, and other infrastructures reinforced with carbon wraps can continue functioning safely for decades without requiring extensive repairs. This durability reduces maintenance costs, minimizes disruptions caused by structural repairs, and provides a reliable long-term solution for both residential and commercial projects.
Applications in Structural Strengthening
Carbon wrapping is widely used in the rehabilitation and strengthening of various structures. It’s particularly effective for beams in buildings, bridges, and other infrastructures that have experienced deterioration or require load capacity enhancement. The technique is also utilized in seismic retrofitting to improve the structural resilience of existing buildings against earthquakes.
Installation Process

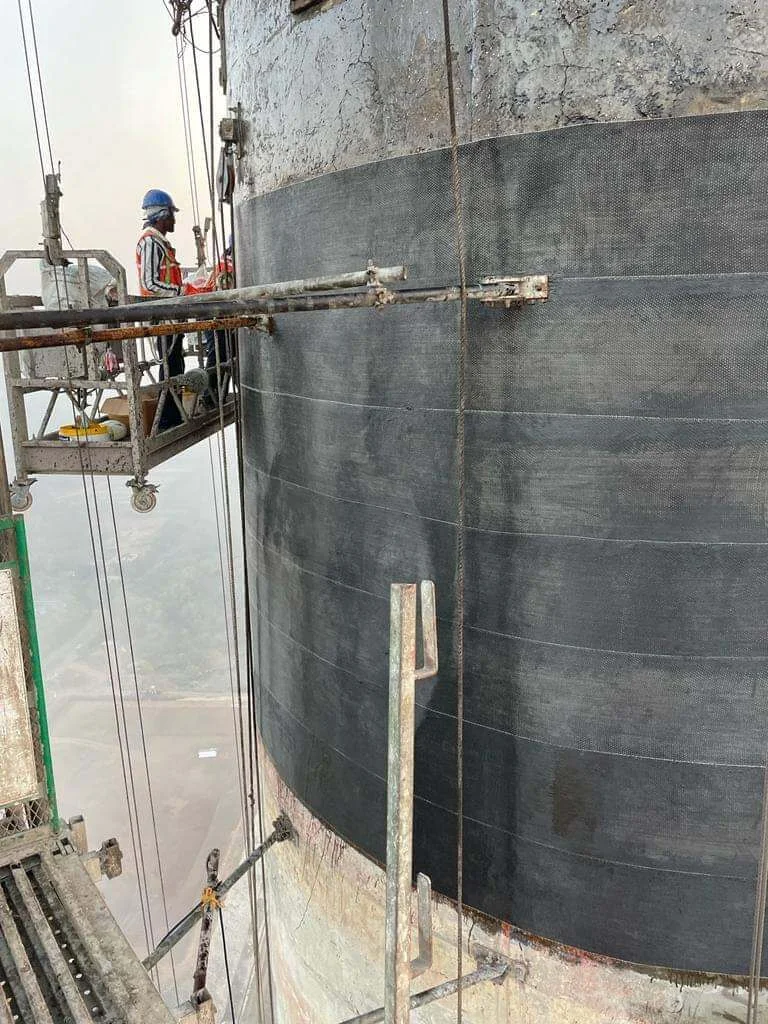

The installation of carbon wraps involves several meticulous steps. First, the surface of the beam is prepared by cleaning and removing any loose material. Next, a primer is applied to enhance adhesion. The carbon fiber sheets are then impregnated with epoxy resin and wrapped around the beam. After proper alignment, the resin is allowed to cure, ensuring a strong bond between the CFRP and the concrete substrate.
Durability and Maintenance
Carbon fiber materials are known for their longevity and low maintenance requirements. Once applied, the CFRP wraps protect the beams from moisture, chemicals, and other corrosive elements. This protective layer reduces the risk of structural degradation, ensuring the beam’s performance remains optimal throughout its service life.
Environmental Considerations
The use of carbon wrapping aligns with sustainable construction practices. The technique minimizes the need for extensive demolition and material replacement. Additionally, carbon fiber materials are lightweight, reducing the overall environmental impact of transportation and installation. By extending the life of existing structures, carbon wrapping contributes to resource conservation and waste reduction.
Choosing the Right CFRP System
Selecting an appropriate CFRP system is vital for the success of the reinforcement. Factors such as the type of beam, load requirements, environmental conditions, and aesthetic considerations should influence the choice of materials and application methods. Consulting with structural engineers and specialists can help determine the most suitable CFRP system for a specific project.
Carbon wrapping for beams is a proven and effective method for enhancing the strength and durability of concrete structures. Its benefits, including increased load capacity, corrosion resistance, and cost-effectiveness, make it a preferred choice for structural reinforcement. By carefully considering the specific needs of a project and selecting the appropriate CFRP system, carbon wrapping can significantly contribute to the longevity and safety of infrastructure.
